Switching regulator with high input voltage range


RECOMs new high input voltage switching regulator R-78HE excels in versatility and quality for your industrial 48V battery powered equipment.

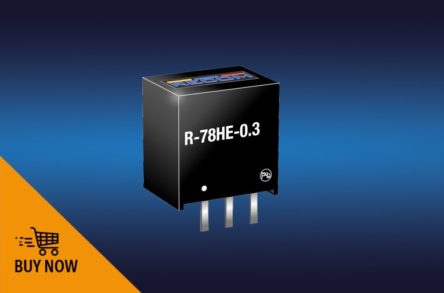

The R-78HE5.0-0.3 is a low-cost industrial grade switching regulator in a classic SIP3 3-pin format that will accept an input voltage up to 72VDC (100V DC surge) to supply a regulated 5V/300mA short-circuit protected output. The converter will operate over an extra-wide ambient temperature range of -40°C up to +105°C without load derating and delivers a tightly regulated (+/- 1%) output with high efficiency and low ripple/noise. The R-78HE5.0-0.3 is also exceptionally reliable with an MTBF of 15 million hours and is manufactured in our IATF 16949 certified factory for consistently high quality control. Typical applications include industrial CAN-bus systems, 36V/48V Li-Ion battery-powered equipment, off-grid solar power supplies and remote powered units with very long supply cables. Samples and OEM pricing are available from all authorized distributors or directly from RECOM.
