ATTEND, a well-known manufacturer of SIM and memory card sockets also thinks of industrial solutions and comes with a new nanoSIM socket with an emphasis on durability in harsh environments at temperatures from -40°C to +105°C, and with the possibility of even upside-down installation.
Since the trend towards smaller SIM cards in consumer electronics is quite clear, NanoSIM already dominates here. There are similar efforts in M2M and IIoT applications.
But it happens quite often that components designed for commercial applications do not meet the demanding industrial requirements.
Attend now comes with a new nanoSIM card holder hinge type with metal cover.
Taking the previous experience into account, they put emphasis on strength, durability and quality to meet the increased requirements and extreme working environment.
The result is the new nanoSIM card socket 115V-AD00 which:
- was designed for industrial applications
- has a working temperature range of -40°C to + 105°C (instead of usual -25°C to + 85°C)
- passed the demanding impact tests – up to 50G
- passed vibration tests in the 10-500Hz range

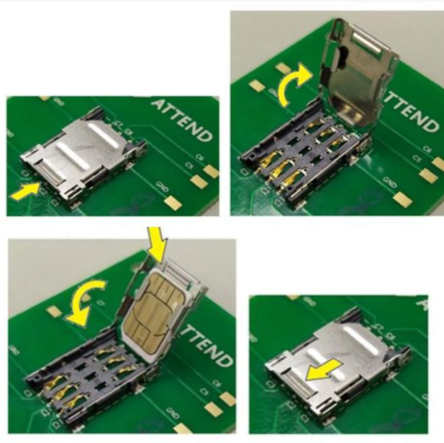

- Push to open metal card holder lid.
- Insert Nano Sim card into the metal holder, make sure the sim card slides to the bottom below the bump stopper.
- Close the metal holder lid flat with plastic base.
- Press and push forward the lifted edge by fingertip until the positive lock clicks into position.
The nanoSIM card socket 115V-AD00 is made for upside-down installation; sim card will stay tight in the metal holder, never slide out from the bump stopper.
