Designed for extended UHF band in tactical communications applications
Richardson RFPD, Inc. announced today the availability and full design support capabilities for a new tunable bandpass filter from NewEdge Signal Solutions, Inc.
The SAX270 electronically-tunable bandpass filter is designed for the extended UHF band in tactical communications applications. NewEdge has used a breakthrough approach to achieve the filter’s extremely small size and over-molded plastic packaging.
Additional key features of the SAX270 include:
- Package size: 0.5 x 0.45 x 0.175 inches
- Insertion loss: 4.3 dB typical
- Noise figure: < .5 dB above insertion loss
- Power handling: +27 dBm P1dB
- DC power consumption: < 100 mW typical

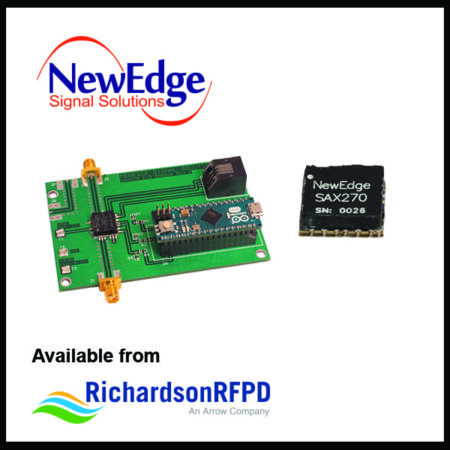

An evaluation board (SAX270_EVB) is also available.
The combination of size and RF performance with low DC power consumption makes this filter ideal for high-performance embedded applications where board size is constrained, such as handheld and manpack radios, as well as radios included in drones and other airborne platforms.
To find more information, or to purchase this product today online, please visit the SAX270 webpage. The device is also available by calling 1-800-737-6937 (within North America); or please find a local sales engineer (worldwide) at Local Sales Support. To learn about additional products from NewEdge Signal Solutions, please visit the NewEdge Signal Solutions storefront webpage.
