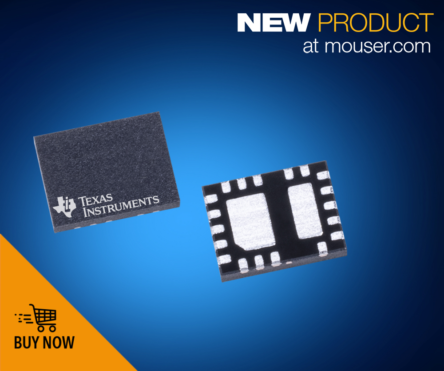

Mouser Electronics, Inc., the industry’s leading New Product Introduction (NPI) distributor with the widest selection of semiconductors and electronic components, is now stocking the LMG1210 200 V half-bridge MOSFET and GaN FET driver from Texas Instruments (TI). Part of TI’s industry-leading gallium nitride (GaN) power portfolio family, the LMG1210 enables higher efficiency, increased power density, and lower overall system size over traditional silicon-based alternatives, and are optimized specifically for speed-critical power-conversion applications.
The TI LMG1210, available from Mouser Electronics, is a 50-MHz half-bridge driver designed to work with enhancement mode GaN FETs up to 200 V. Engineered for maximum performance and highly efficient operation, the LMG1210 features an ultra-fast propagation delay of 10 ns, which is faster than traditional silicon half-bridge drivers. The device also provides a low switch-node capacitance of 1 pF with user-adjustable dead time control which helps improve efficiency by allowing designers to optimize dead-time within their system.
The LMG1210 offers 3.4-ns high-side–to–low-side delay matching, a minimum pulse width of 4 ns, and an internal LDO that ensures a gate-drive voltage of 5 V regardless of supply voltage. The driver also includes a common-mode transient immunity (CMTI) of more than 300 V/ns — one of the industry’s highest — which enables high system-noise immunity.
TI’s LMG1210 driver is ideal for a broad range of applications, including high-speed DC/DC converters, motor control, Class-D audio amplifiers, Class-E wireless charging, RF envelope tracking, and other power-conversion applications.
To learn more, visit www.mouser.com/ti-lmg1210-mosfet-gan-fet-drivers.
