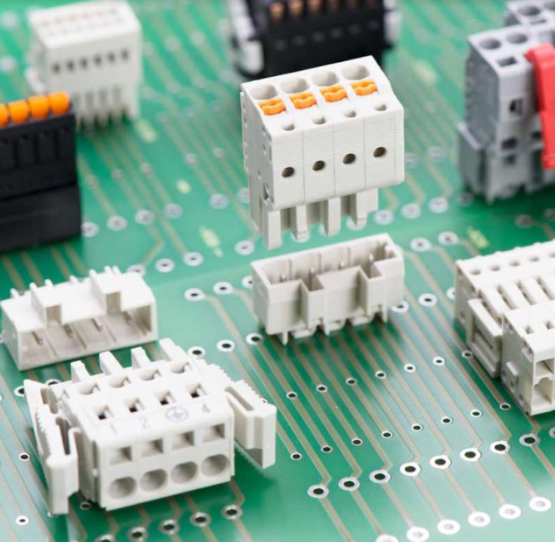

If there is any series of connectors with countless combinations, then it is the WAGO Multi Connection System (MCS) series. And how many are countless? Exactly 433 pages in the printed catalogue in A4 format.
MCS is a family of disconnectable terminal blocks divided into four groups according to size, i.e. maximum operating voltage and current.
And since they are WAGO products, it means they are screwless with CAGE CLAMP and PUSH-IN CAGE CLAMP technologies. PCB mating parts are obviously without these technologies.
It would take an eternity to describe thbe countless amount of possibilities, and thus we’ll mention at least some examples:
PCB Connector can be:
- With mounting flange
- With screw flange
- With locking lever
- With rotary locking lever
Cable Connector can be:
- With screw flange for panel mount
- With snap-in flange for panel mount
- With screw flange for mating part
- With locking lever
- With rotary locking lever
- With Snap-in mounting feet
- With DIN-Rail mounting
