Any fashionista surely knows that green makes you look slimmer. Apart from the aesthetic reasons, we are bringing you two stock types of connectors from the manufacturer Euroclamp series SHM-3,5-E. This series is only 7.15 mm thick, which is significantly slimmer compared to the earlier introduced SHM-3,5-F series, which is up to 11.7 mm.

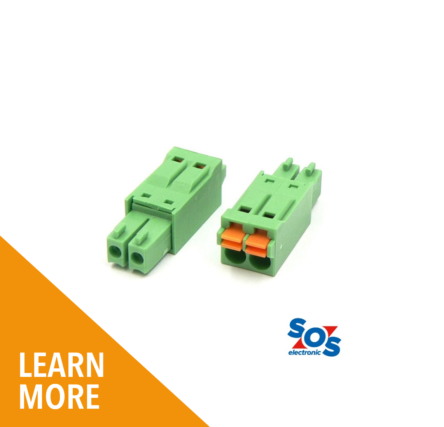

These are disconnectable terminal block connectors, the free-hanging part. Regarding the technology, these are push-in spring connectors. This means that a solid conductor and stranded wires terminated with a sleeve can simply be pushed into the connector. And the actuator button should only be used at the release of wire or when working with stranded cables. Mating parts are from the series PVxx-3,5.
Basic parameters:
- Pitch: 3,5 mm
- Maximum wire cross-section: 1,5 mm2
- Maximum voltage: 160 V
- Maximum current: 8 Amp
The 7,15mm SHMxx-3,5-E connector series is available directly from stock.
Find more information in our article. If green is not your colour, please contact SOS electronic at [email protected]
