DTC Launch COFDM Video RX & IP Decoder

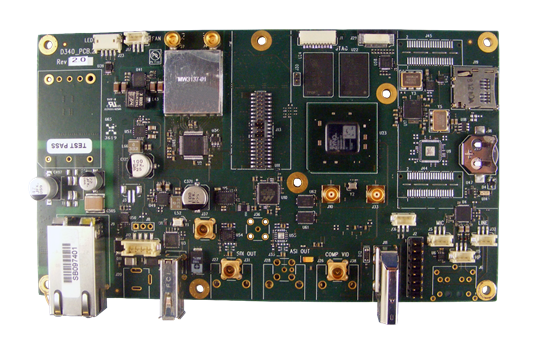

Domo Tactical Communications (DTC), the wireless communications specialist, has launched the D340-OEM, a feature-rich digital diversity video receiver and hardware-based streaming IP video decoder.

Incorporating DTC’s renowned Maximal Ratio Combining (MRC) diversity reception, the D340-OEM provides unrivalled performance in demanding urban multipath environments.  With two on-board wide range UHF tuners, the D340-OEM is optionally expandable to four inputs using a plug-in daughterboard.  In conjunction with DTC’s comprehensive range of downconverters, it can access frequency bands from VHF to X-band.

D340-OEM supports reception of DVB-T transmission in 8,7 & 6MHz bandwidths as well as DTC’s proprietary Narrowband COFDM modes (2.5MHz, 1.25MHz & 625KHz) for unrivalled range and spectral efficiency.   The ultra-low latency H.264 video decoding is complemented by a comprehensive range of interfaces including HDMI, HD-SDI and analogue composite video (PAL/NTSC) as well as audio, serial, ethernet, ASI and chaining.   Optional AES128/256 encryption offers robust security.

High-performance surveillance, communications and broadcast systems enable DTC customers to securely monitor, communicate and share information with complete confidence even in the most demanding of environments.  The D340-OEM is the perfect companion to the company’s comprehensive range of COFDM video transmission and IP video encoding solutions.
