Luso announce that Delta Electronics have added a new 750W output power supply to their MEB Series of medical enclosed power supplies.

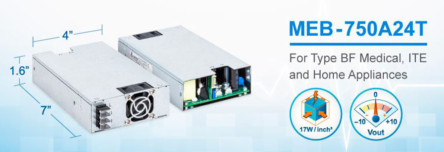

The MEB-750A24 comes in a compact size at 4”x 7”x 1.6” and provides a single 24V output with 5V/2A standby output. The product can deliver full power from -20°C to 50°C without de-rating.
This full feature power supply offers current sharing, conformal coating, and electric shock protection complying with 2 x MOPP suitable for type BF Medical products. Additional features include ±10% voltage trimming with options on remote on/off and power good signals.
The MEB-750A24 comes with a C14 Inlet (MEB-750A24B) or alternatively you can specify an alternative US Terminal (MEB-750A24T).
It is certified to medical, ITE and home appliance safety approvals, including UL/CE/CSA/CCC and CB certification.
The MEB range now encompasses, 500W, 750W and 1200W medical power supplies.
Product Highlights
- Up to 750 Watt in 4″x7″x1.6″ Package
- Up to 17W/inch3 Power Density
- Full Power from 90V to 264V
- Full Power up to 50C Ambient
- Up to 500KHrs MTBF
- 2 x MOPP Isolation
- Suited for Type BF Medical Products.
- 5V/2A Standby Output
- Current Sharing
- Conformal Coating
- Class B Conducted and Radiated EMI
- IEC60601-1-2 4th Edition Immunity Compliance
- Normal and Reversed Option for Remote On/Off and Power Good Signal
- Voltage Trimming
Our product specialists are on hand to assist with product selection and guide you through the design cycle. We can offer technical and commercial support and arrange for samples. Datasheets are downloadable from the Luso website, please contact us for more information.
