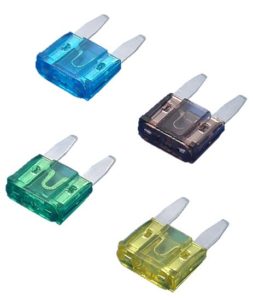

Miniblade
CamdenBoss broadens its fuse inventory with Miniblade fuses suitable for automotive and automation. Colour coded amp ratings to match industry guidelines, the range of 16x12mm blade fuses are manufactured to meet UL-248 and IEC60068-2-6. Fast acting overcurrent protection ensures circuitry and devices are safe in the event of overloading or a short circuit.
With the ability to withstand hot or cold temperatures and added vibration resistance, CamdenBoss’ series of blade fuses are available in seven Amp ratings from 5A up to 30A for higher power requirements.

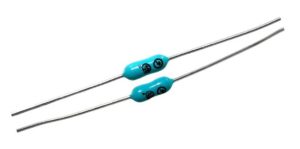

Axial fuses
Supplied on a bandolier, CamdenBoss’ range of micro miniature axial fuses are available in very fast or time delay versions, sporting UL and TUV certifications, ensures your components are protected with these quality fuses.
Axial fuses are cost-effective and easy to install. Aided by automation machinery, Axial fuses can be installed to systems making use of the ‘ammo reel’ packaging.
CamdenBoss’ CFB2470 series covers Amp ratings from the small 375mA up to 7A with excellent I²T characteristics.

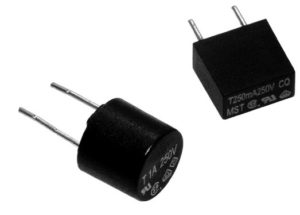

Radial fuses
With similar performances as regular 5×20 fuses, radial fuses provide a space saving option as well as a reduction in bill of material costs since they do not need a fuse holder, due to their through hole mounting pins with a pitch of 5.08mm.
Square or circle bodies are available from CamdenBoss; each offering quick blow or time delay types. Current ratings start at 40mA up to 6.3A as standard. Square type radial fuses possess UL and VDE certification whilst the circle options are BSI approved.
Automation friendly, both are supplied in taped ammo packs.
5x20mm fuses
CamdenBoss’ circuit protection range includes 5x20mm fuses in time delay or quick blow speeds carrying an array of test house certifications, including VDE and UL. Ceramic or cost-effective Glass options are available.
5x20mm fuse holders are also available to suit a variety of applications, such as panel or surface mounted fuses and PCB mounted fuses. The 5×20 fuse range is also the perfect addition to the CFTBN fused terminal block range.
Current ratings start from 100mA to 20A for glass fuses and 500mA to 12.5A in ceramic.

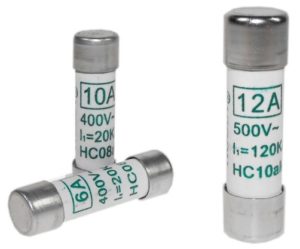

6.3x32mm fuses
Similar to 5×20 fuses CamdenBoss’ range of 6.3×32 fuses are available to purchase in both ceramic and glass with quick blow and time delay options. UL approvals are available across the board providing peace of mind with a tested product.
CamdenBoss’s CMFTB fused terminal block goes hand in hand with this range of fuses alongside other fuse holder options with surface mount capabilities.
Glass and ceramic fuses are manufactured in current ratings starting at 100mA up to 25A quick blow and 15A time delay.

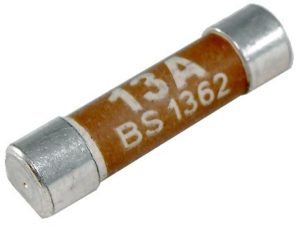

6.3x25mm & British plug top fuses
Conforming with BS1362, CamdenBoss provides British plug top fuses in current ratings of 3, 5, 10 and 13A.
In addition to the ceramic plug top fuse, also available is the glass 6.3x25mm fuses in either time delay or quick blow functions. Starting at 250mA the glass fuses are available up to 13A.
Specialist fuses
For larger or higher voltage systems, there are specialist fuses available in various sizes for different applications.
These include motor circuit protection, GPV solar photovoltaic fuses, AR semiconductor power fuses and GG general power fuses.
About CamdenBoss
CamdenBoss continues to push the boundaries on providing customer driven solutions, utilising over 50 years of manufacturing experience.
As the biggest innovator of high-quality plastic enclosures and electro-mechanical components in the UK, CamdenBoss has built an unbeatable and comprehensive of products, guaranteed to satisfy any requirement.
CamdenBoss consistently drive quality and innovation to enable the customer to stand out from the crowd. They remain the only company to provide multiple industrial products including terminal blocks, waterproof connectors, fuses and fuseholders, along with customised plastic and metal enclosures. Giving the customer engineered solutions and modern products all designed around today’s market.
Call our sales team today on 01638 716101
