Bel Power Solutions PET2000-NAS446 AC/DC Front End Power Supply

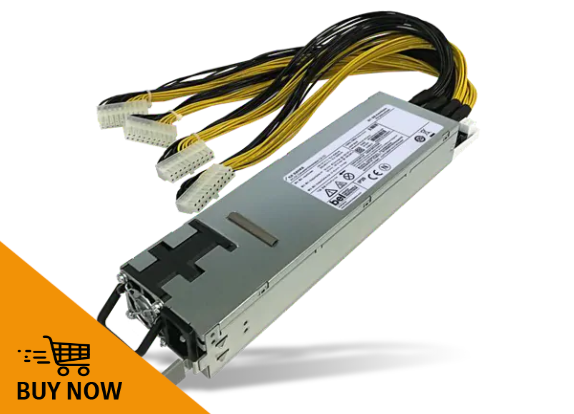

Bel Power Solutions PET2000-NAS446 AC/DC Front End Power Supply is a 2000W AC/DC, power-factor corrected (PFC) power supply that converts standard AC power into a main output of 12VDC. PET2000-NAS446 uses full digital control architecture for greater efficiency, control, and functionality. The unit includes four 450mm long cables with 20-pin connectors. The four connectors are designed to be attached directly to individual mining load boards. Bel Power Solutions PET2000-NAS446 power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).


  • Best-in-class, 80 PLUS “Platinum” efficiency
  • Auto-selected input voltage ranges: 90-140VAC, 180-264VAC
  • AC input with PFC
  • 2000W continuous output power capability
  • Output cable wire harness set included
  • Always-on 12V standby output
  • Full digital controls for improved performance
  • High density design
  • 73.5 x 40.0 x 331.6mm form factor
  • PMBus® communication interface for control, programming, and monitoring
  • Status LED with fault signaling


  • Cryptocurrency mining
  • Blockchain applications
  • Networking switches
  • Servers and routers
